Real-time feedback switch state of door or window, work with the switch to realize the scenario of opening the door and turning on the light.

Working scenario

When you have to go to bed at midnight, no more darkness.

Mesh Sensor detects you then it will send the signal to Gateway, and then gateway control the mesh switch to turn on.

Once you get back home, when the door opens, then the lights turn on.

Scenario: from 6:00 pm to 7:00 pm, during this time when the house gate door sensor detects the door open, the gateway will turn on the light automatically for you.

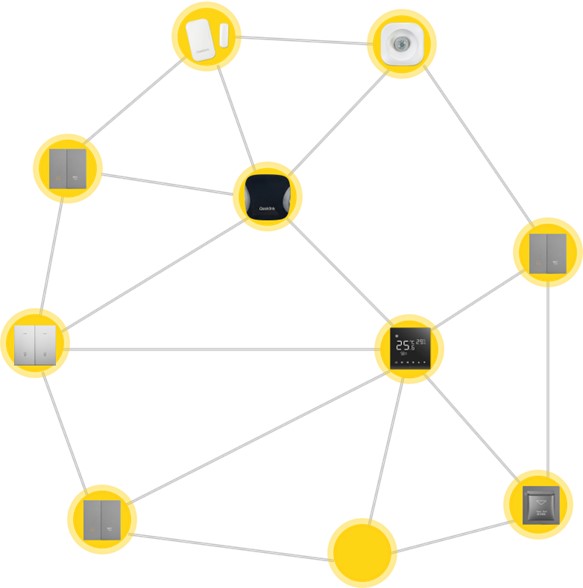

Working diagram

This is accessory of Mesh thinker, it can use neutral line wiring socket, curtain motor, switch to extend its signal to the Mesh thinker, however, because it is power supply device, to extend its standby time, it can’t working as mesh relay point.

Suggested Installation location:

Door or window or near to, host and magnet should align

Product Parameters:

Product name: Bluetooth door sensor

Appearance material: PC

Product Feature: real-time status feedback “close” or “open”, history status, low power warning, work with the host for security or scenario

Model: BLE-GD-1

Communication Mode: BLE5.0

Battery model: 3V CR-2450

Product size (mm): 59 * 34.5 * 15(main) 35.8 * 12.5 * 12(magnet)

Battery duration: 18 months(triggered 15times per day.)

Working temperature: 0-40 °C

Working humidity:10%-90% RH (non-condensable)
